Enerysys Datasafe Batteries
A reliable range of both flooded and VRLA batteries specifically designed for the high power requirements of the most demanding uninterruptible power supply systems ranging from workstations to data centers and all needs in between.
DataSafe HX16 | DataSafe NPX | DataSafe HX | Genesis NP

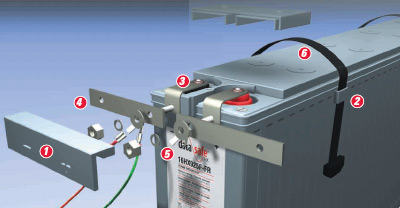

DataSafe HX16
The world's first 16V front terminal UPS battery.
- Insulating covers with voltmeter probe access enhance safety and simplify maintenance routines
- Integrated handle support doubles as an automatic spacer between units to enhance airflow and thermal management
- Nord-Lock® washer provides a secure terminal connection over the life of the battery
- Solid tin-plated copper busbars reduce connection resistance to enhance power delivery from the battery system
- Dual-tab washer enables quick connection to battery monitoring systems
- Nylon strap handle simplifies installation, removal and replacement
DataSafe® batteries. More power, less space, easier maintenance.
Eliminate the difficult maintenance and burdensome space requirements of top-terminated 12V UPS batteries. Revolutionary, new front-terminated DataSafe 16V UPS batteries, available in 500 WPC, 800 WPC and 925 WPC sizes, are more space efficient, more cost effective, and easier to maintain than 12V batteries. They use proven VRLA technology, are conducive to incorporating monitoring systems, and scale easily to larger capacity UPS systems with one-third fewer parallel battery strings.
Other benefits of DataSafe 16V batteries:
- Smaller footprint per kilowatt
- Simplifies installation
- Improves reliability
- Complete front access
- Eliminates wasted headspace found in typical 12V top-terminated designs
- Easy terminal access simplifies maintenance
- No costly slide out trays required to obtain terminal access
DataSafe NPX (23-150 watts/cell)
 Offering superior value, especially in UPS applications, the DataSafe NPX series is designed for high rate discharge applications. These batteries are used primarily where high power is required for a short duration.
Features & Benefits
- Capacity: 23 - 150 watts/cell
- Design Life: 3-5 years @ 25ºC(77ºF)
- Valve regulated lead acid
- UL recognized
- Approved for shipping as non-hazardous, non spillable
- Operates in any position
Applications
- General Electronics
- Uninterruptible Power Supply
DataSafe HX (12V, 205-500 Watt/Cell)
 DataSafe HX is the ideal source of power to protect vital systems. The HX range from EnerSys offers an unsurpassed reputation for excellence and improvements on industry standards for performance. Thick ribbed polypropylene plastic containers provide high mechanical strength and superior safety features.
Features & Benefits
- Capacity: 25 - 800 watts/cell in 12 volt configuration
- Design Life: 10 years @ 25ºC(77ºF)
- Valve regulated lead acid
- UL pending
- Approval pending for shipping as non-hazardous, non-spillable
- VO flame retardant polypropylene material or non-flame retardant polypropylene available
Applications
- Uninterruptible Power Supply

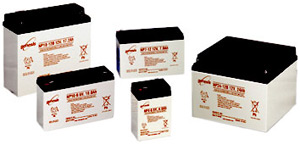

Genesis NP
 General purpose Genesis NP batteries are designed using proven gas recombination technology which removes the need for regular water addition by controlling the evolution of hydrogen and oxygen during charging. Gas recombination provides the user with freedom to use lead acid batteries in a wide range of applications.
Features & Benefits
- Capacity: 0.8Ah - 91Ah
- Design Life: 3-5 years @ 25ºC(77ºF)
- UL recognized
- Approved for shipping as non-hazardous, non-spillable
- Operates in any position
Applications
- Emergency Lighting
- General Electronics
- Medical
- Mobility
- Security
- Uninterruptible Power Supply
|
